RO3010 High Frequency PCBs
Introduction
Rogers RO3010 advanced circuit materials are ceramic-filled PTFE composites that provide a higher dielectric constant with outstanding stability.
RO3010 laminates are not only competitively priced but also deliver exceptional mechanical and electrical reliability. This stability makes it easier to design broadband components, allowing for a wide range of applications across various frequencies. Plus, this material’s characteristics make RO3010 laminates excellent for circuit miniaturization.
Features & Benefits
The RO3010 features a dielectric constant (Dk) of 10.2 ± .30 at 10 GHz, along with an impressively low dissipation factor of just 0.0022 at the same frequency.
Additionally, this material has a low coefficient of thermal expansion (CTE) of 13 ppm/°C in the X-axis, 11 ppm/°C in the Y-axis, and 16 ppm/°C in the Z-axis.
The RO3010's impressive dimensional stability, with its CTE closely matched to copper, helps minimize phase shift and maintain consistent performance even under fluctuating temperature conditions.
Furthermore, it comes with the assurance of ISO 9001 certification, reflecting top-quality standards and reliability.
And if you're working with multi-layer board designs, this material is a fantastic choice, providing the stability and versatility you need for complex circuitry.

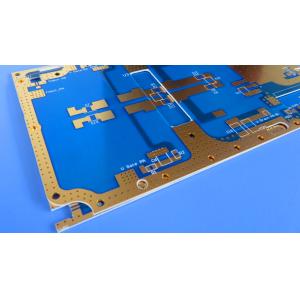

PCB Capability
| PCB Material: | Ceramic-filled PTFE composites |
| Designation: | RO3010 |
| Dielectric constant: | 10.2±0.3 |
| Layer count: | Single Layer, Double Layer, Multilayer, Hybrid PCB |
| Copper weight: | 1oz (35µm), 2oz (70µm) |
| PCB thickness: | 5mil (0.127mm), 10mil (0.254mm), 25mil(0.635mm), 50mil (1.27mm) |
| PCB size: | ≤400mm X 500mm |
| Solder mask: | Green, Black, Blue, Yellow, Red etc. |
| Surface finish: | Bare copper, HASL, Immersion tin, Immersion silver, Immersion gold, Pure gold, ENEPIG, OSP etc.. |
I’m excited to showcase our advanced PCB capabilities using RO3010 material.
We support single-layer, double-layer, multilayer, and hybrid PCBs, providing flexibility to meet your design needs. You can choose from copper weights ranging from 1oz (35 μm) to 2oz (70 μm).
We offer a range of thicknesses: 5 mil (0.127 mm), 10 mil (0.254 mm), 25 mil (0.635 mm), and 50 mil (1.27 mm) to suit various applications.
Our maximum PCB size is 400 mm x 500 mm, accommodating a wide variety of projects.
Additionally, we provide various solder mask options, including green, black, blue, yellow, and red, along with surface finishes such as bare copper, HASL, immersion tin, immersion silver, ENIG, pure gold, ENEPIG, and OSP to meet your specific requirements.
Applications
RO3010 PCBs are widely used in various applications, including:
Automotive radar systems,Global positioning satellite antennas, Cellular telecommunications systems, Patch antennas for wireless communications, and Direct broadcast satellites etc.
Thank you for watching! If you have any questions or need further details, feel free to reach out. See you next time!
